Type Tested Electrical Panels - Low Voltage Products (IEC 61439-1&2)

Load Controls is a trusted electrical panel manufacturer offering a complete range of low voltage switchgear, power distribution boards, and type tested electrical panels for industrial, commercial, and infrastructure applications. Our panels are designed for safety, reliability, and high performance.

Key Features of Type Tested Electrical Panels - Low Voltage Products

  • Rated Current: Up to 6300 A
  • Rated Operational Voltage: Up to 690 V AC / 1500 V DC
  • Fault Level: Up to 100 kA for 1 second
  • Panel Construction: Form-1 to Form-4 design
  • Degree of Protection: Indoor: IP4X / IP5X | Outdoor: IP55
  • Busbar: Aluminum or Copper with interleaved design for ratings above 2500 A

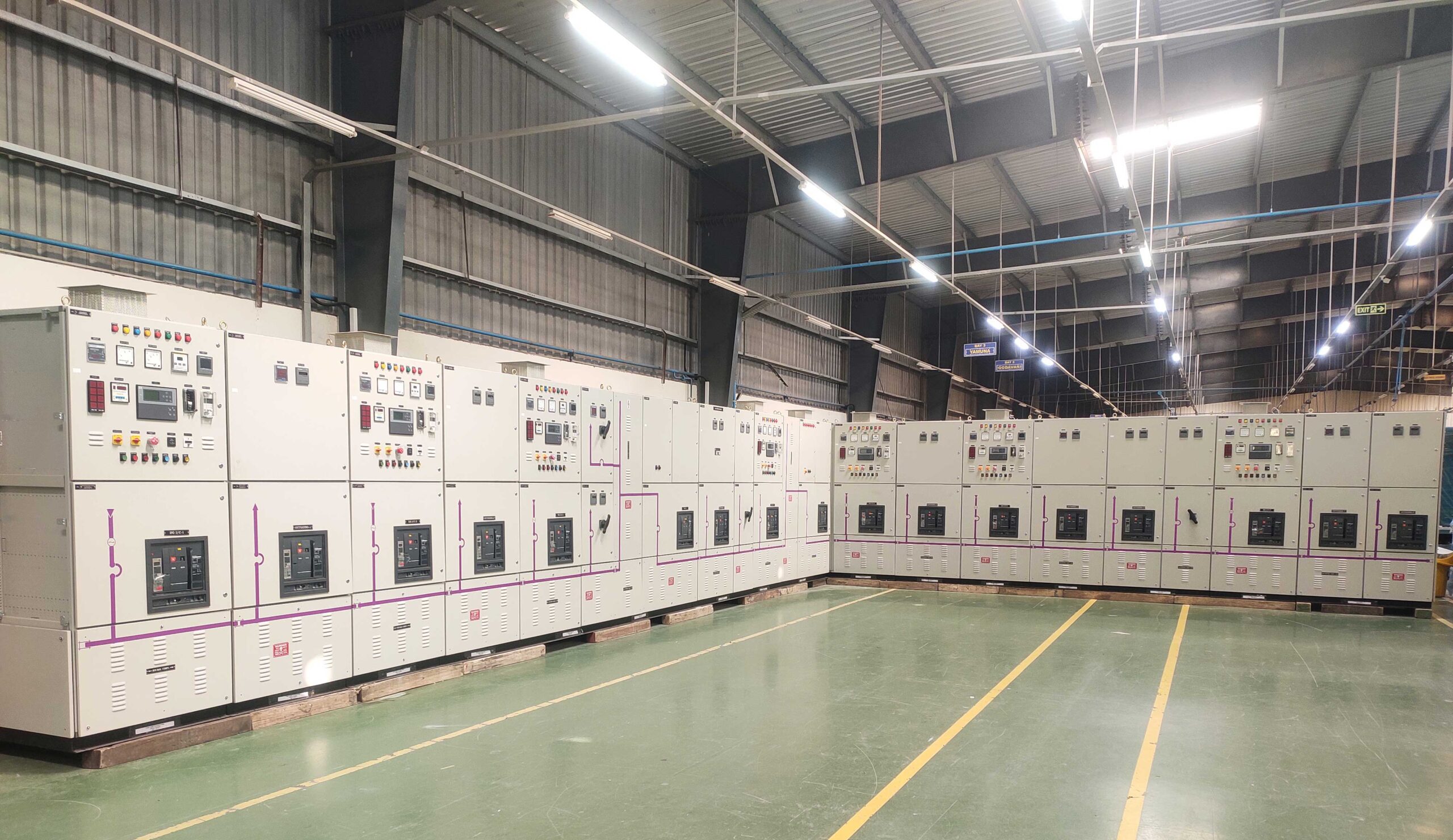

Load Controls Power Control Center (PCC) panel showcasing modular design and robust build quality
PCC-1

Power Distribution Boards - PCC (Power Control Center)

Our power distribution panels conform to IEC 61439-1&2 standards, ensuring type tested electrical panels for maximum reliability.
  • Rated Current: Up to 6300 A
  • Form Construction: Form 3 & Form 4
  • Cable Entry: Top or bottom (suitable for bus duct entry)
  • Ingress Protection: IP4X to IP52 & IP55 (outdoor)
  • Custom Designs: Based on specific requirements
  • Features: Full range of metering and protection systems, PLC control integrated with BMS/EMS, fire suppression system

Electrical Control Panels - MCC (Motor Control Center)

Designed by leading electrical control panel manufacturers, our MCCs are type tested electrical panels that seamlessly integrate with power distribution boards for efficient power management.
  • Rated Current: Up to 6300 A
  • Form Construction: Form 2 to Form 4
  • Cable Entry: Top or bottom
  • Panel Types: Single front & double front, withdrawable & fixed versions
  • Control Options: Contactors, DOL, star-delta starter, soft starter, VFDs
  • Ingress Protection: IP4X to IP52 & IP55 (outdoor)
  • Features: PLC control with BMS/EMS, fire suppression system, floor mounting, maximum safety & reliability

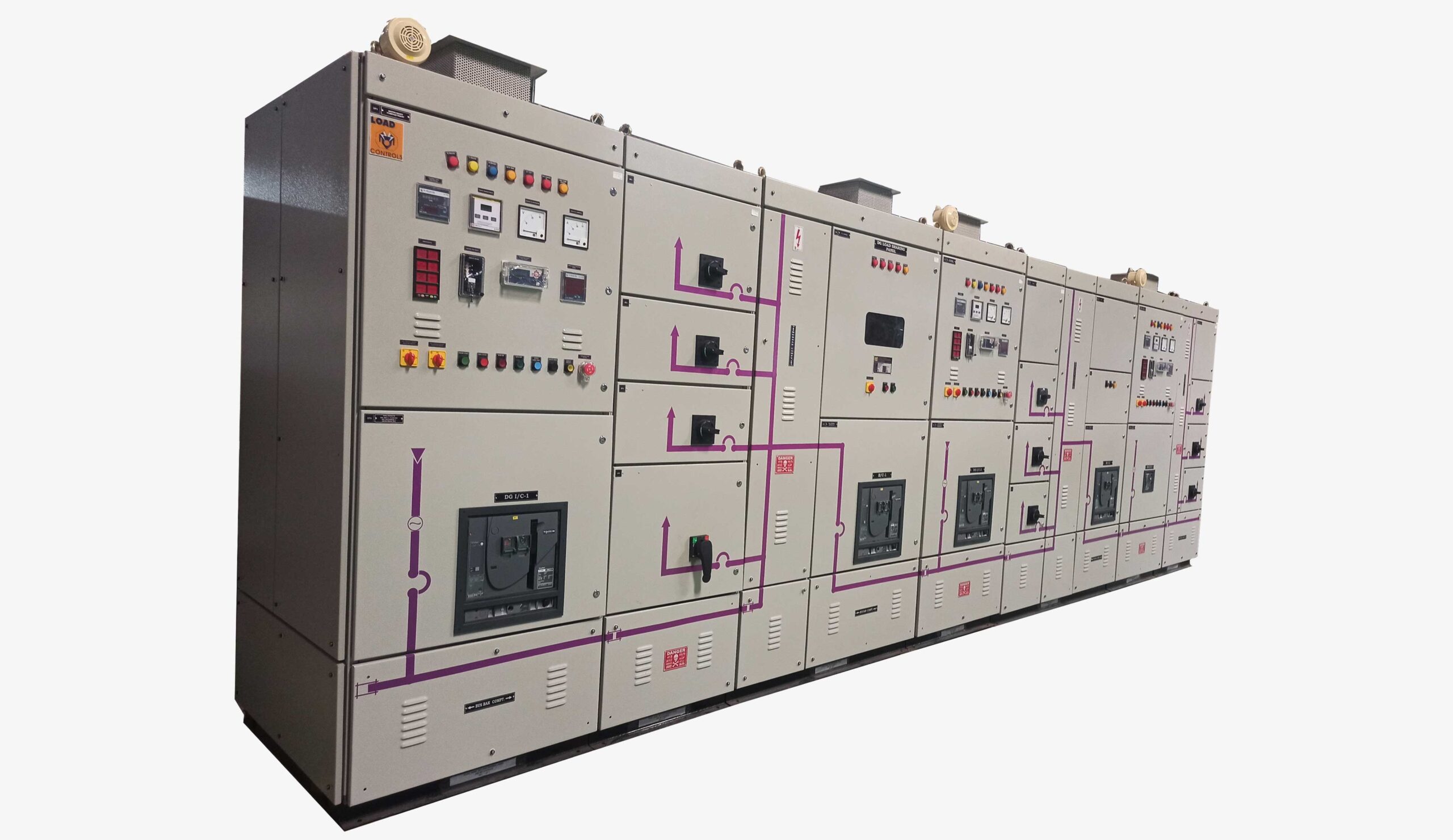

Load Controls Motor Control Center (MCC) panel showcasing modular design and robust build quality
DG-SYNC
Load Controls Diesel Generator Synchronization Panel designed for seamless integration and load sharing among multiple generators

Electrical System Panels - DG AMF & Synchronizing Panels

Our electrical system solutions include DG synchronization panels and power distribution boards for seamless integration, load sharing, and reliable power management across multiple generators.
  • Pole System: 3-pole or 4-pole
  • Ratings: Up to 10,000 A
  • Load Transfer: Via ACBs, MCCBs, or contactors
  • Protection Class: Up to IP52
  • Features: Automatic/manual synchronizing, load sharing/load shedding, engine monitoring, emergency shutdown, warm-up/cool-down periods, multi-attempt engine start control

Power Distribution Panels - APFCR / AHF Panels

Our automatic power factor correction panels are type tested electrical panels designed for efficient energy management:
  • Ratings: 2.5 kVar to 100 kVar
  • Mounting: Wall or floor
  • Ingress Protection: IP4X to IP5X
  • Options: With or without harmonic filters (AHF), top/bottom cable entry
Load Controls Automatic Power Factor Correction Relay (APFCR) designed for efficient energy management and power factor optimization
Multi-meter metering panel by Load Controls for precise energy monitoring

Electrical Panel Manufacturer - Metering Panels

Load Controls offers power distribution boards and metering panels suitable for internal and external mounting with precise energy monitoring:
  • Mounting: Floor-standing & wall-mounted
  • Features: Sealable metering compartments, adequate cable spacing, tariff metering as per local authorities
  • Custom Designs: Based on end-user requirements
  • Safety: Maximum reliability

Low Voltage Switchgear - Feeder Pillar / Kiosk Panels

Our low voltage switchgear includes feeder pillar panels designed for safe and reliable distribution:
  • Form Construction: Form 2 to Form 4
  • Ingress Protection: IP42 to IP55
  • Cable Entry: Top or bottom
  • Mounting: Floor-standing & wall-mounted
  • Custom Designs: As per end-user requirements
Load Controls LT kiosk enclosure used for low-voltage power distribution
Load Controls Variable Frequency Drive (VFD) panel for motor speed control in electrical systems

Type Tested Electrical Panels - Soft Starter & VFD Panels

We provide type tested electrical panels and power distribution boards that support precise motor control and efficient energy management.
  • Soft Starter Panels: Reduce inrush current and torque during motor startup
  • VFD Panels: Provide variable speed control by adjusting voltage and frequency for energy efficiency

Power Distribution Boards - Distribution Boards (PDB)

Our power distribution panels are tailor-made to meet your electrical system needs:
  • Ingress Protection: IP4X & IP5X
  • Design Options: Row-type distribution, pan assembly (single/multi-split), flush or surface versions
  • Custom Designs: According to end-user requirements
Load Controls power distribution board (PDB) panel for electrical power management
Load Controls busduct system for power distribution in electrical infrastructure"

Medium Voltage Switchgear - Air Insulated Bus Ducts

  • Type: Non-Segregated Phase Bus Duct (LV)
  • System Voltage: 415 V to 690 V
  • Current Ratings: Up to 4000 A
  • Application: Efficient power distribution boards, power distribution panels, and medium voltage switchgear solutions for industrial electrical infrastructure.
